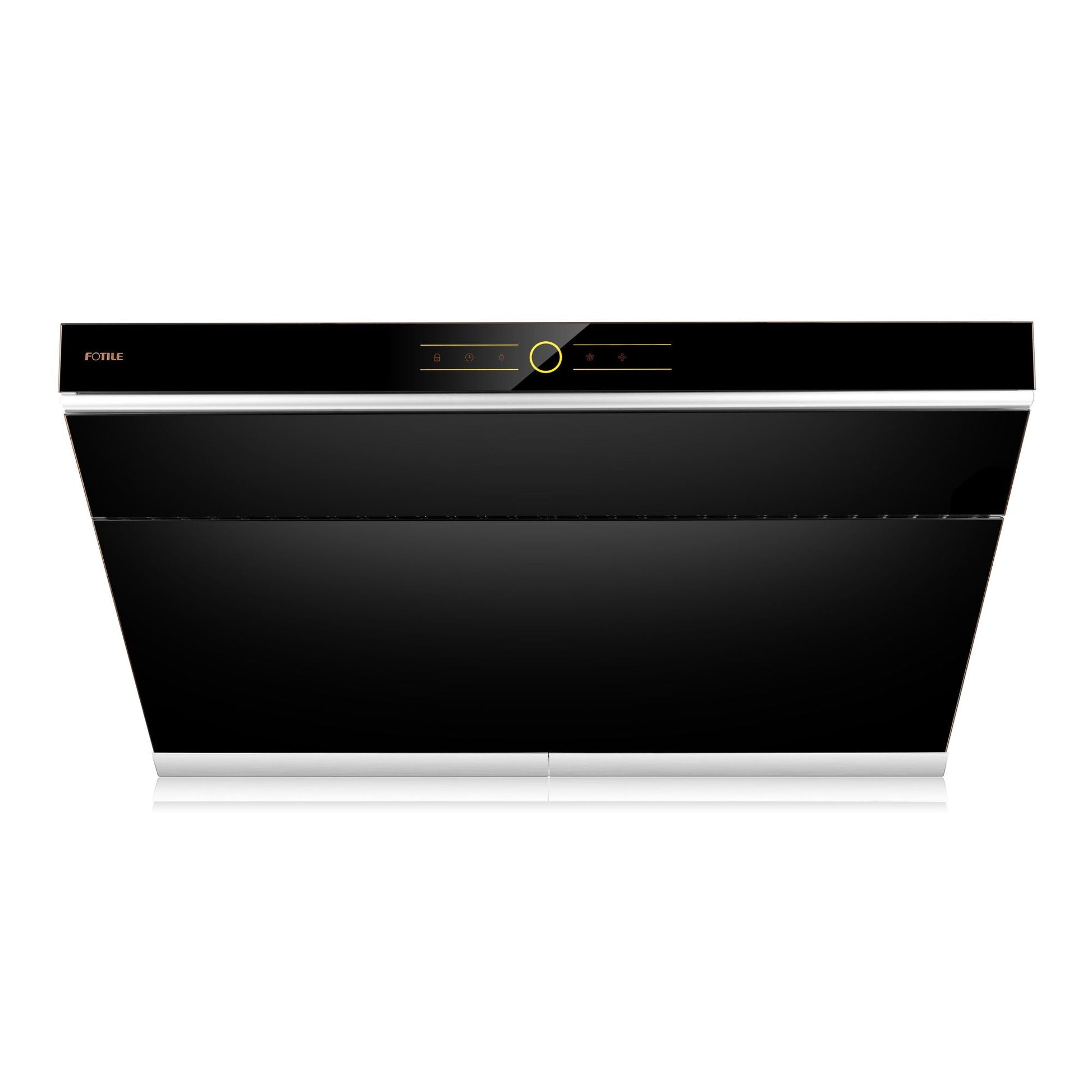

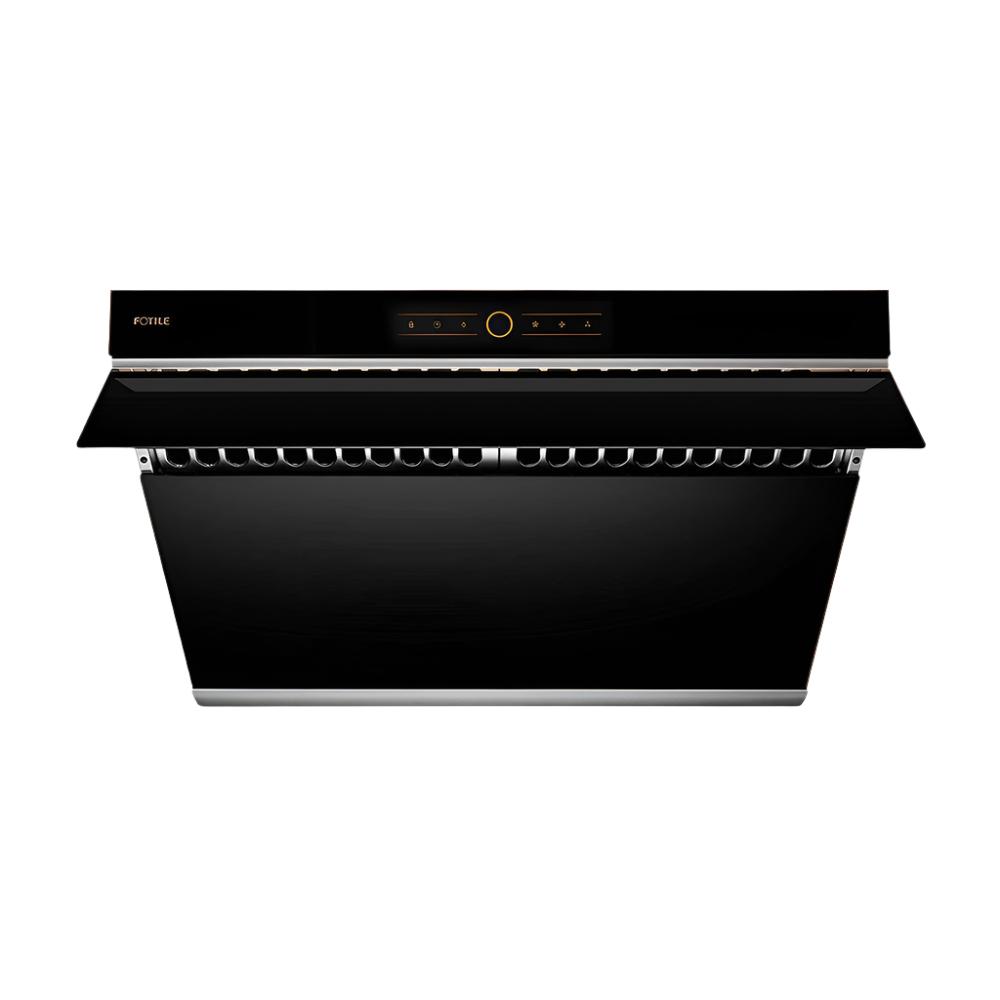

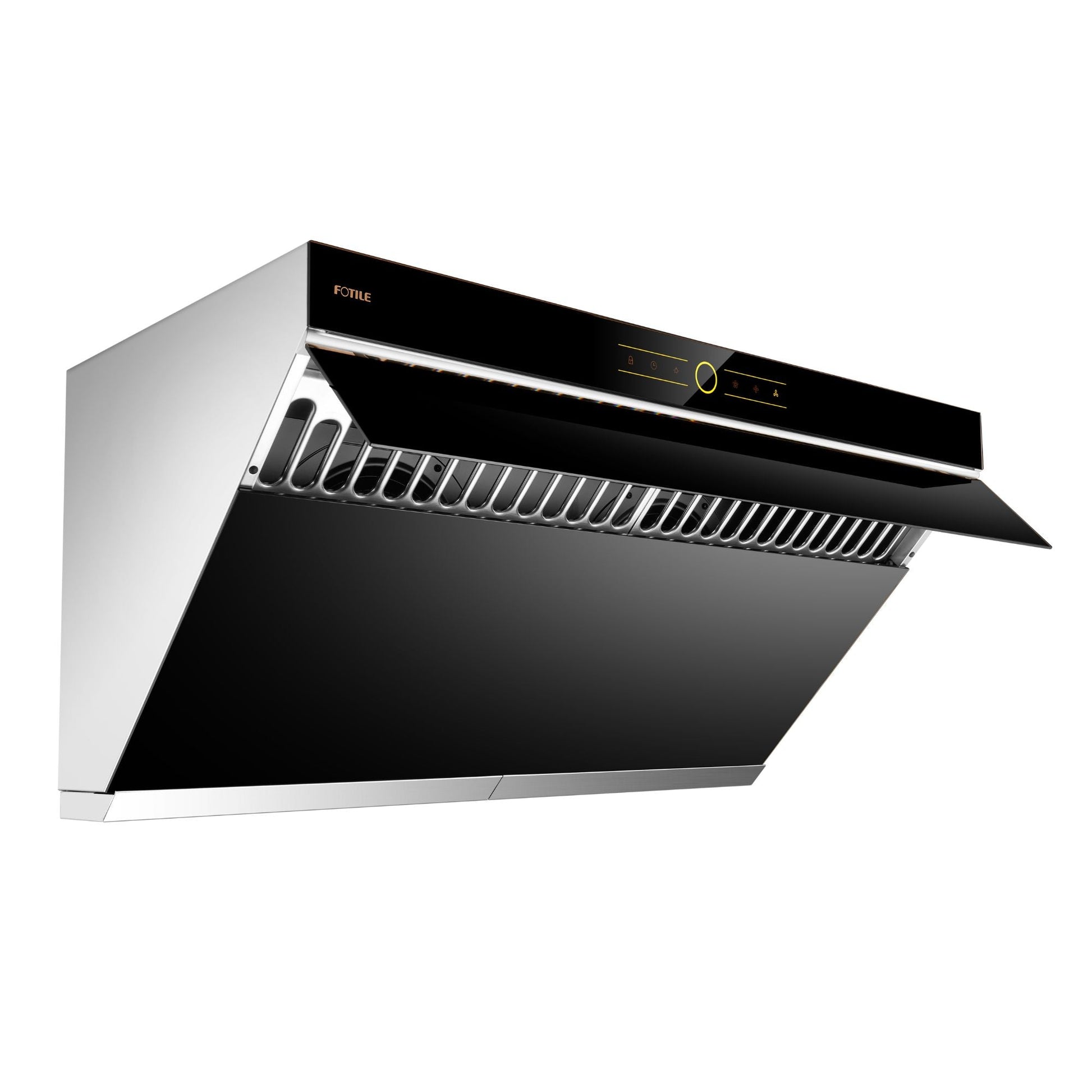

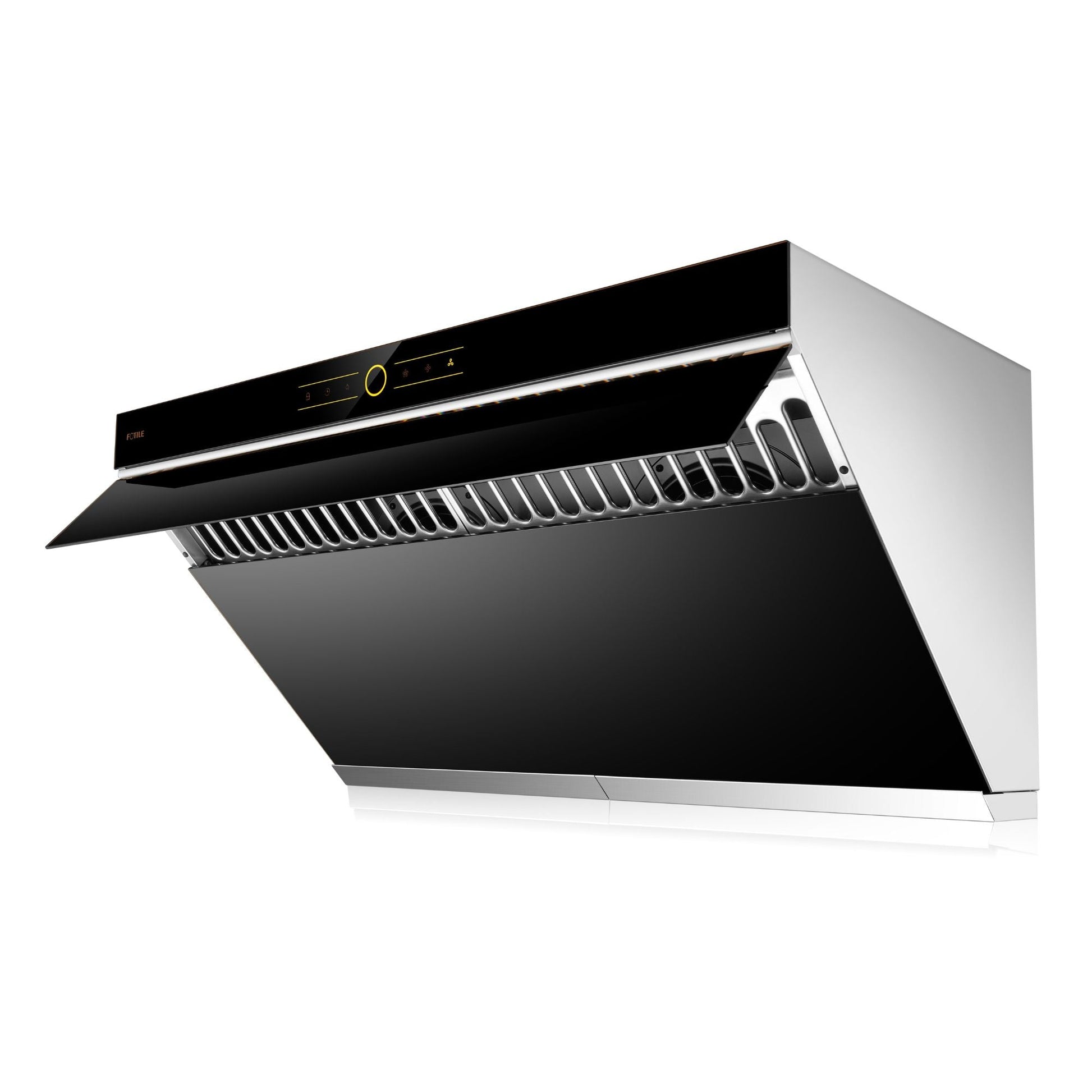

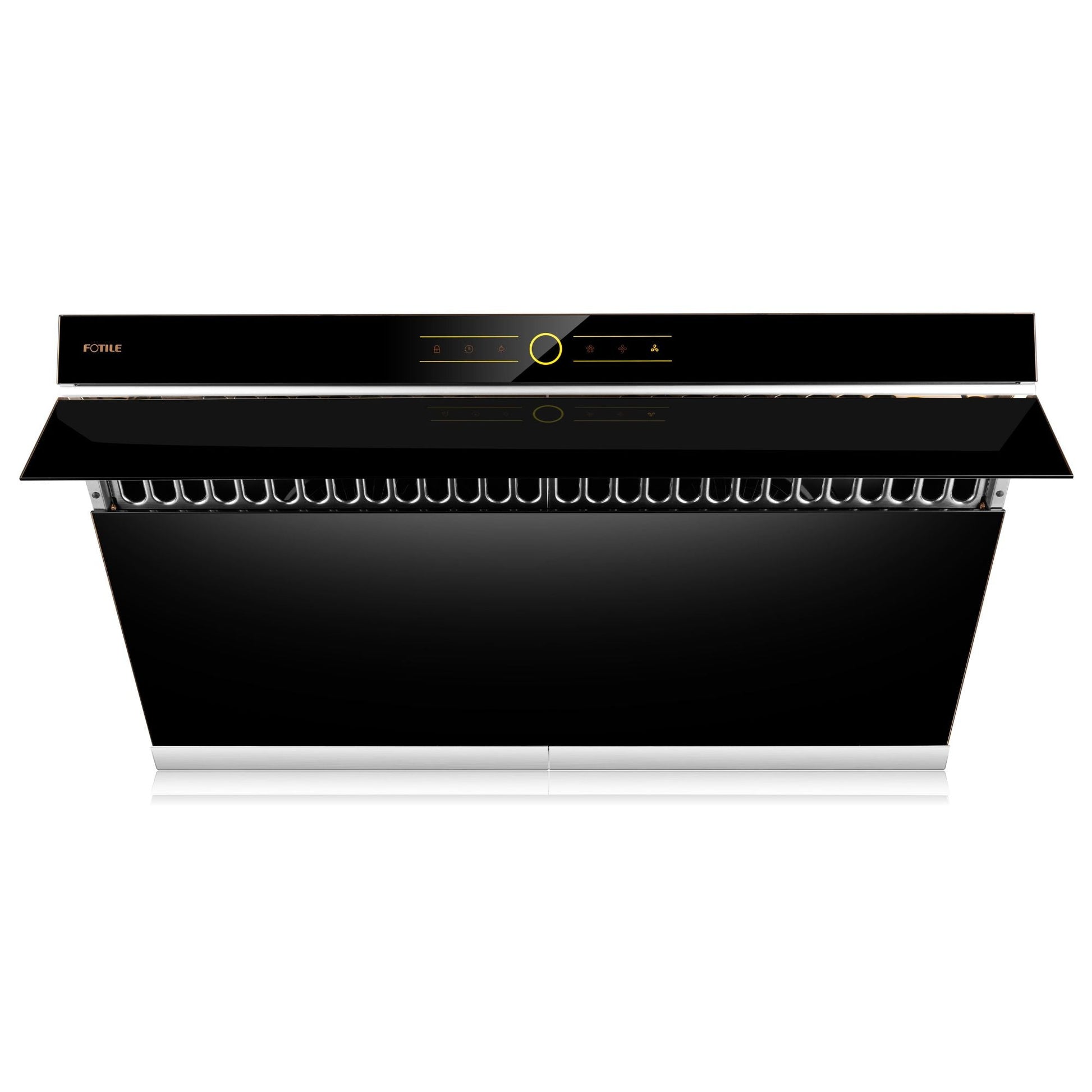

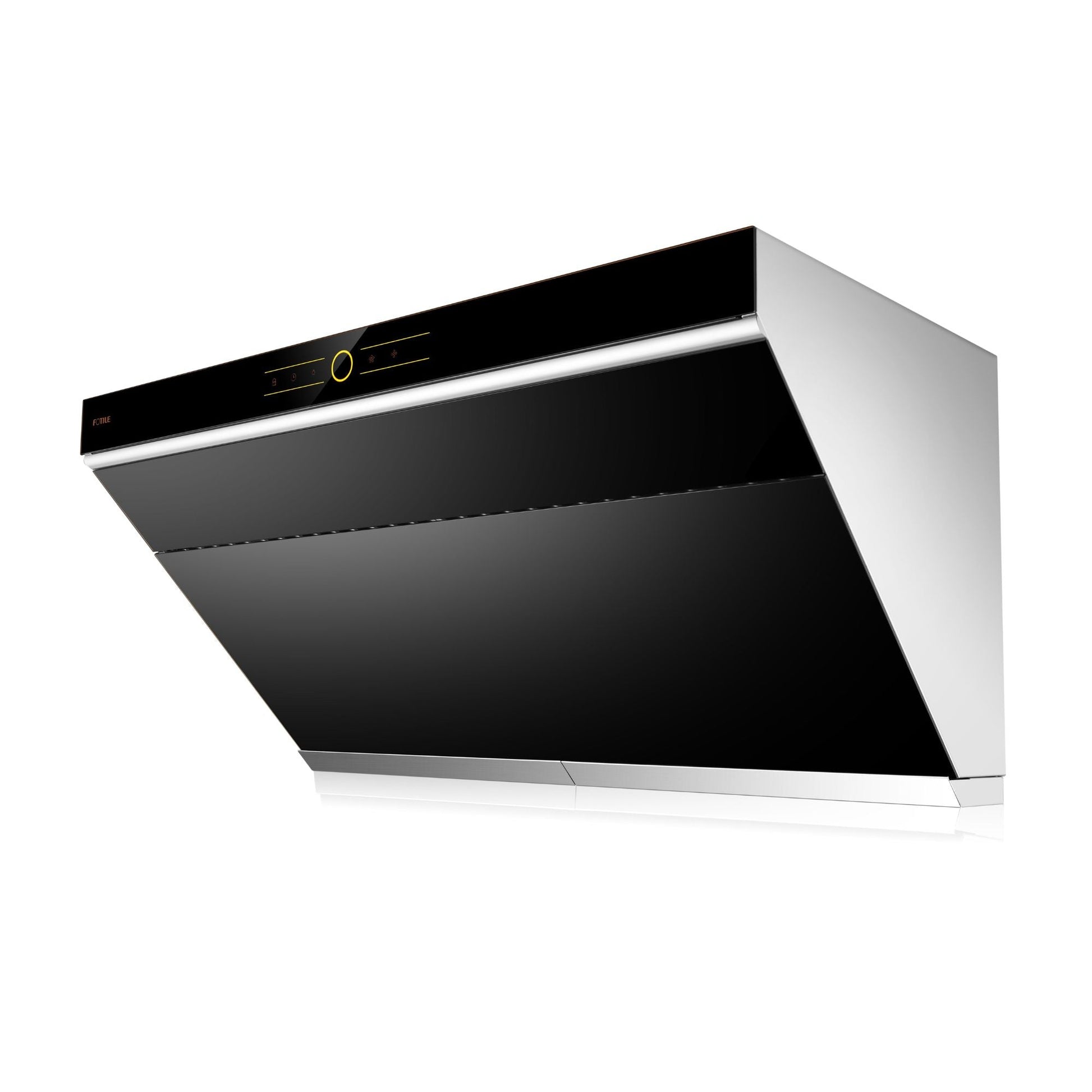

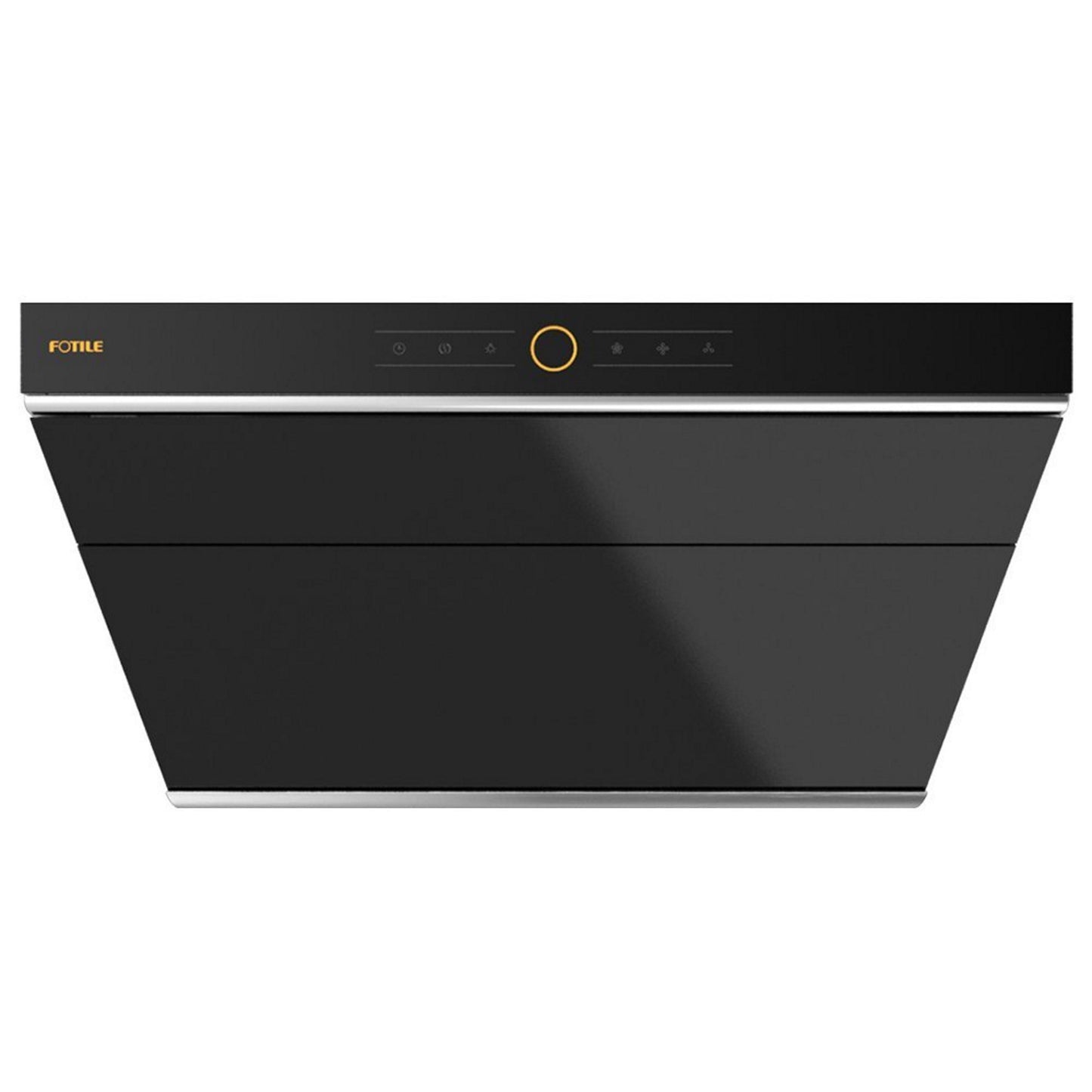

30"/36" Under-Cabinet / Wall Mount Classic Series | JQG7501 / JQG9001

★★★★☆

86 reviews 92% recommend

30 / 36 in. 850 CFM Under Cabinet / Wall Mount Range Hood w/ Touchscreen 30"/36" wall-mount/under-cabinet range hood Black tempered glass Max EQUIV. CFM: 850* 39dB Min. Noise Level.

Regular price $1,099.00 USD
Regular price $1,399.00 USD Sale price $1,099.00 USD
21% OFF
Shipping calculated at checkout.
Size
QTY

Why you'll love it

30 / 36 in. 850 CFM Under Cabinet / Wall Mount Range Hood w/ Touchscreen

  • 30"/36" wall-mount/under-cabinet range hood
  • Black tempered glass
  • Max EQUIV. CFM: 850*
  • 39dB Min. Noise Level
  • Inclined design for exhaust extraction
  • Close proximity to cooking surface and smoke
  • 90° Automatic Open Capture Shield
  • 30" Inclined Vent Covers 6ft² of Cooking Area (4-5 Burners)
  • 36" Inclined Vent Covers 7.2ft² of Cooking Area (5-6 Burners)
  • Dual AC Motors
  • 2-Min Delay shutoff
  • 95% Grease Separation Rate 98% Odor Elimination Rate

*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

    Add FOTILE Extended Limited Warranty:

    1 Year

    $49.99

    2 Years

    $109.99

    3 Years

    $179.99

    Learn More:


    Download spec sheet

    Installation Instruction Video for 36" Inclined Vent

    Become a Dealer

    Why you'll love it

    30 / 36 in. 850 CFM Under Cabinet / Wall Mount Range Hood w/ Touchscreen

    • 30"/36" wall-mount/under-cabinet range hood
    • Black tempered glass
    • Max EQUIV. CFM: 850*
    • 39dB Min. Noise Level
    • Inclined design for exhaust extraction
    • Close proximity to cooking surface and smoke
    • 90° Automatic Open Capture Shield
    • 30" Inclined Vent Covers 6ft² of Cooking Area (4-5 Burners)
    • 36" Inclined Vent Covers 7.2ft² of Cooking Area (5-6 Burners)
    • Dual AC Motors
    • 2-Min Delay shutoff
    • 95% Grease Separation Rate 98% Odor Elimination Rate

    *Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

      Add FOTILE Extended Limited Warranty:

      1 Year

      $49.99

      2 Years

      $109.99

      3 Years

      $179.99

      Learn More:


      Download spec sheet

      Installation Instruction Video for 36" Inclined Vent

      Become a Dealer

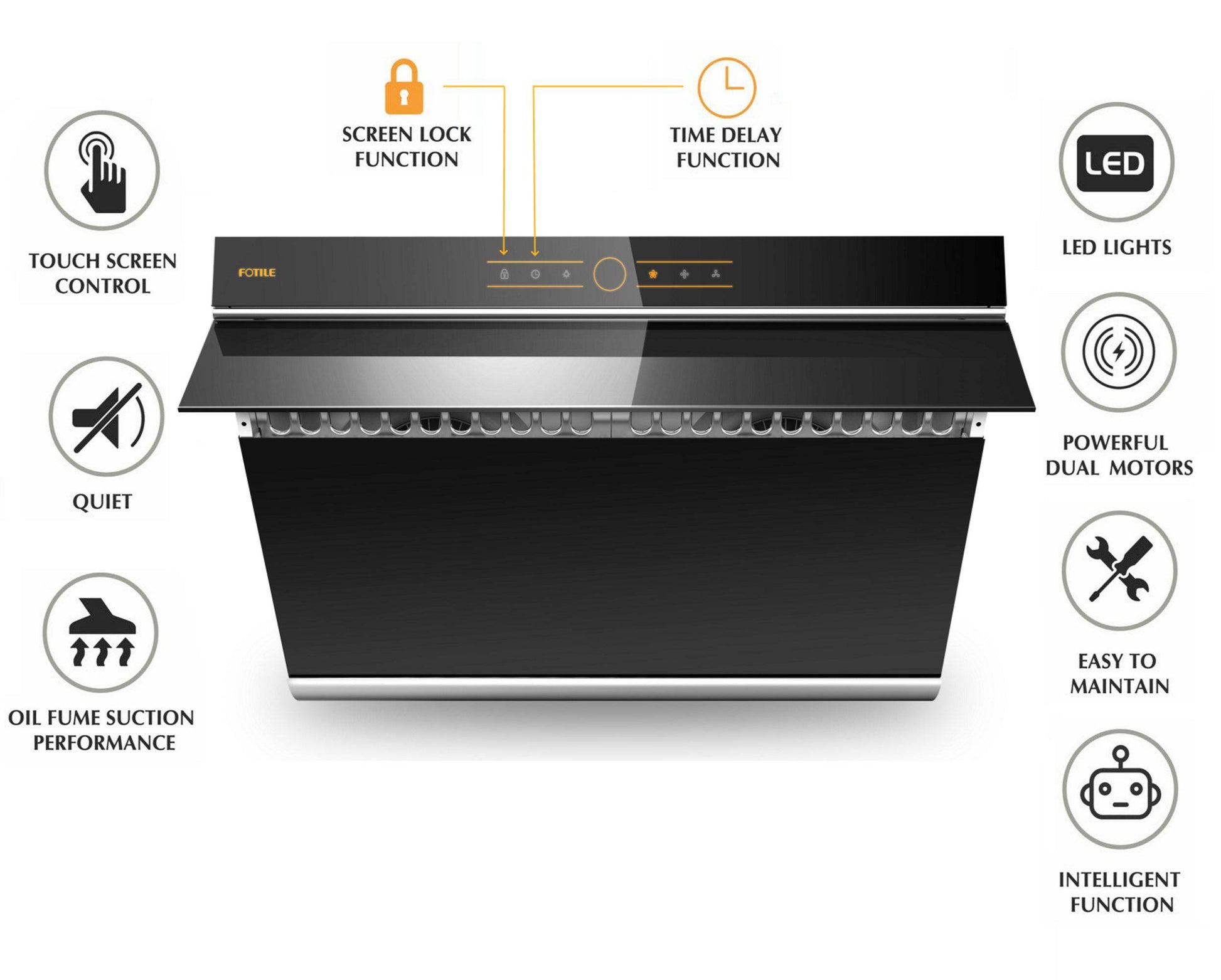

      • Dual AC Motors

      • Screen Lock Function

      • O-touch Control

      • Bright LED Lights

      • Delay Shutoff Function

      • 3 Speed Settings

      • Auto 90° Capture Shield

      • Easy to Clean

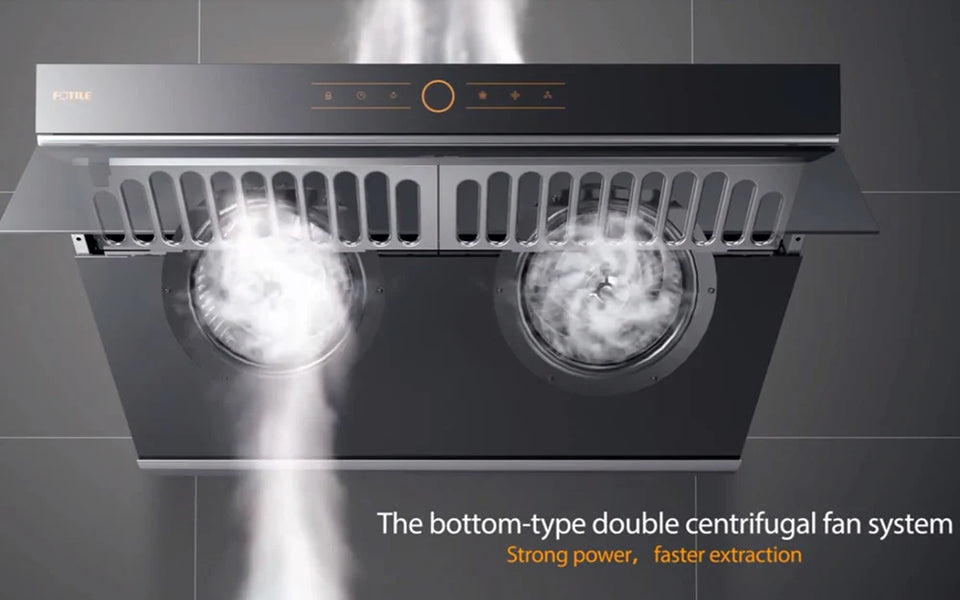

      • Double Centrifugal Fans ensure strong power and fluent extraction.

      • Super Quiet Operation: Lowest Speed has 39dB noise level; Mid Speed has 49.2dB; High Speed has 54.3dB.

      • Screen Lock Function allows you to clean your Range Hood without accidentally turning it on.

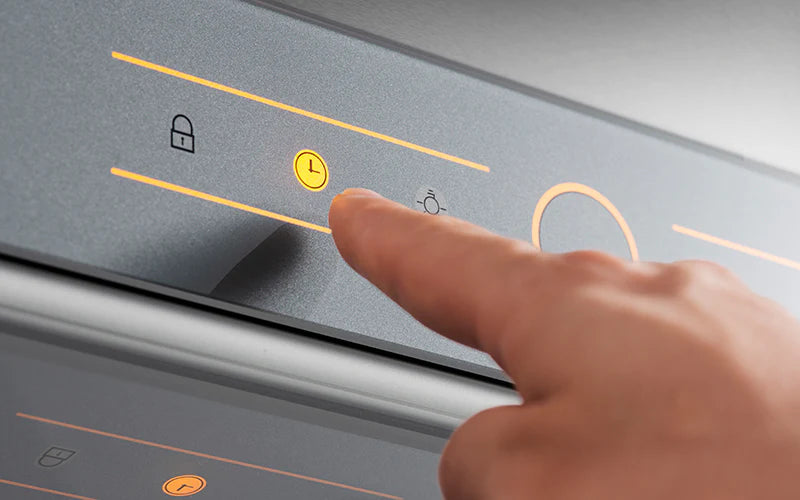

      • A Delay Function lets the Classic Slant Vent Series range hood work for several minutes after cooking to ensure all the smoke and odor are removed from your kitchen.

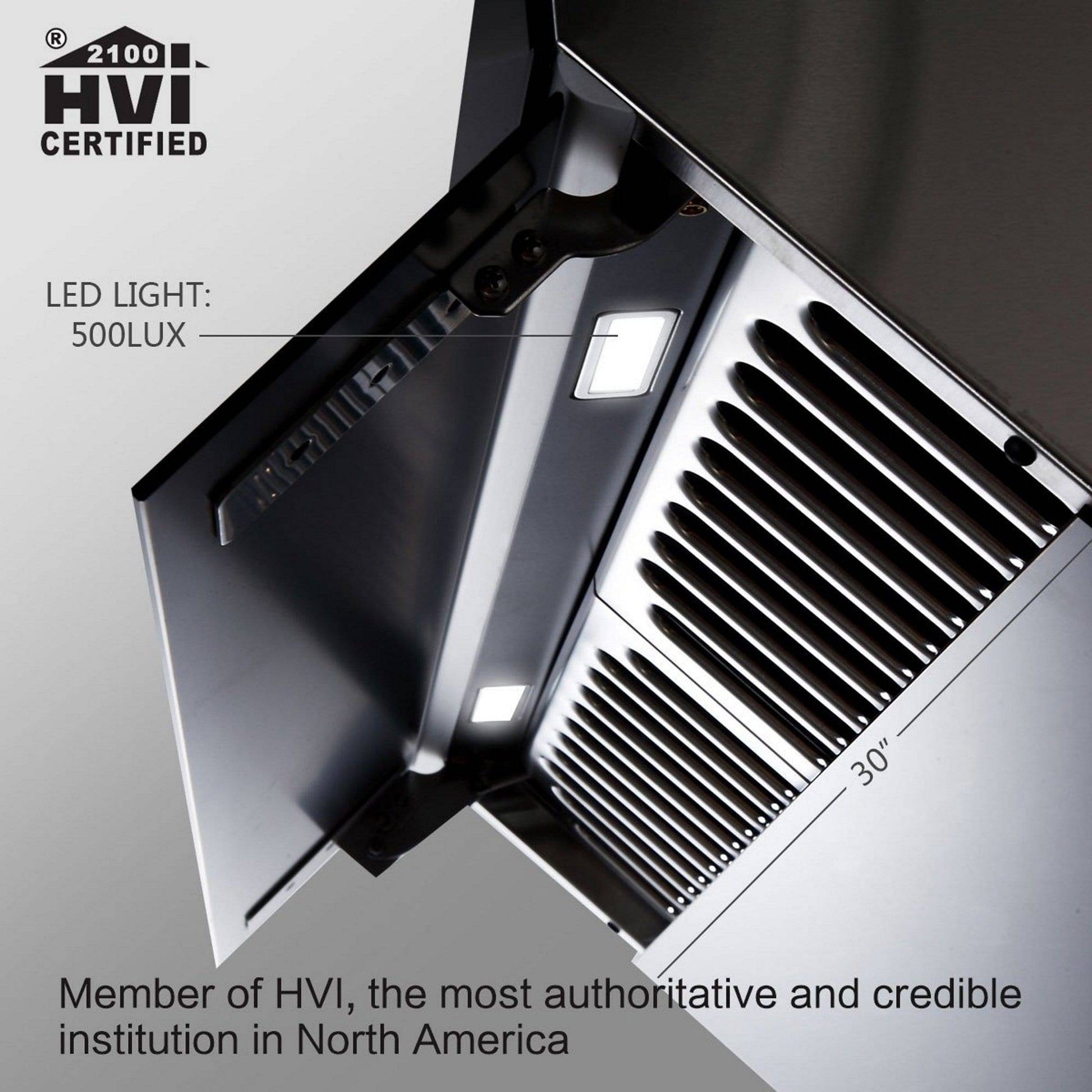

      • Powerful Lights light up the whole cooking area and help you see the color of the food you are cooking.

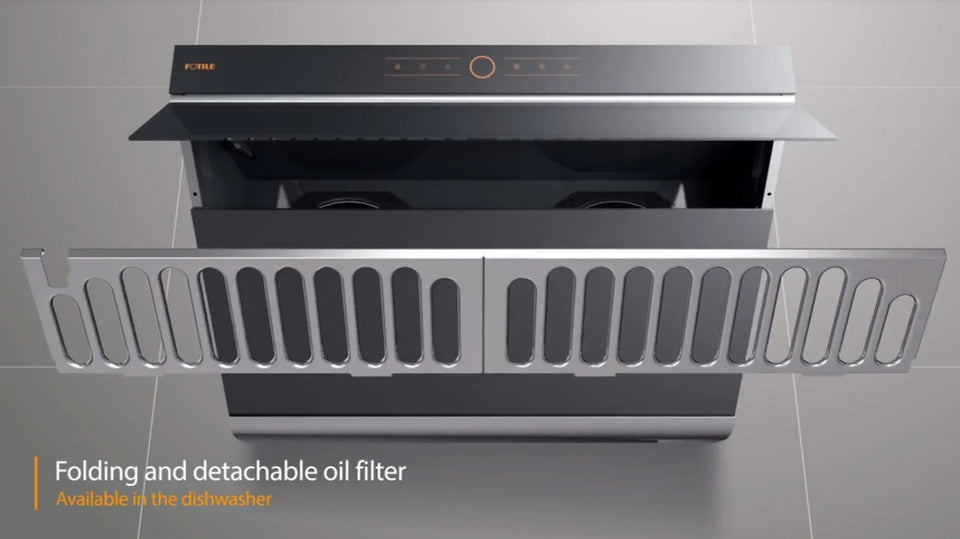

      • Large Grease Tray with more volume decreases the frequency of cleaning. Folding Oil Filter is dishwasher safe.

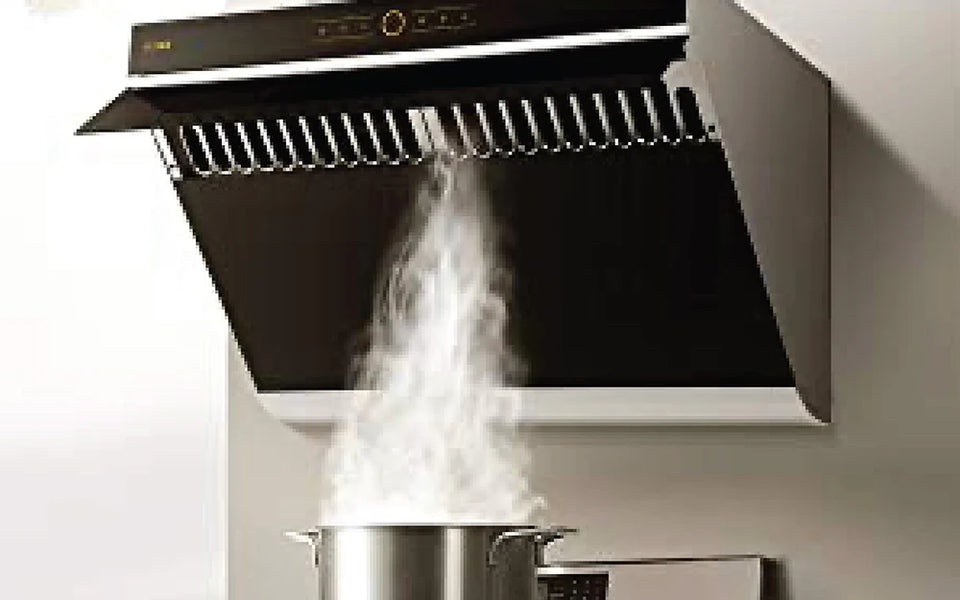

      WhisPower System

      Due to our WhisPower Technology, FOTILE’s Classic Series range hood is able to capture a higher CFM than actually published by achieving the Venturi effect created with our Capture Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.

      Extra-wide Fume Inlet ensures even suction pressure at every angle

      Extra-wide Fume Inlet ensures even suction pressure at every angle

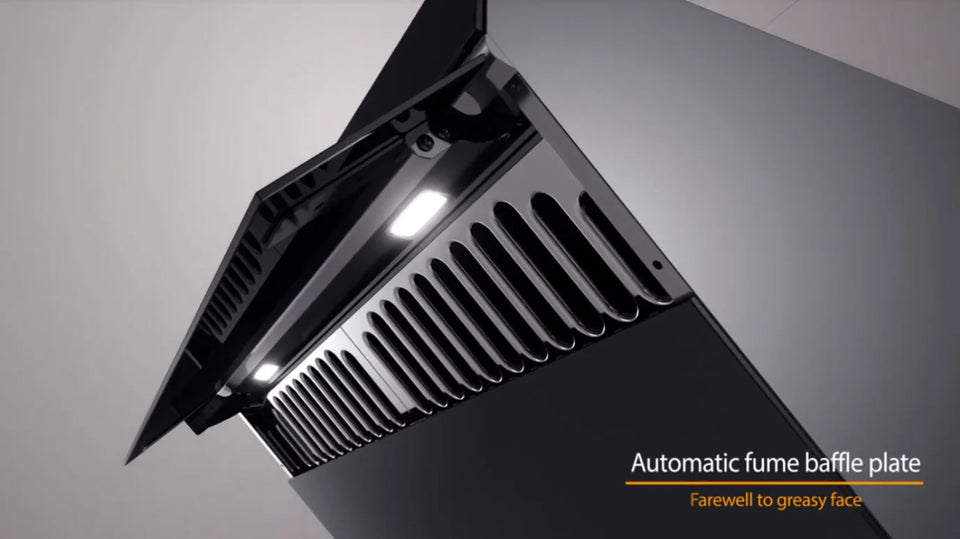

      90-degree Auto Open Fume Capture Shield prevents the smoke from spreading effectively and protects you against harm.

      Super-large Coverage Area easily covers all the burners on your cooktop

      Extra-wide Fume Inlet ensures even suction pressure and airflow at every angle. Super-large Coverage Area easily covers all the burners on your cooktop.

      Specifications & Product Details

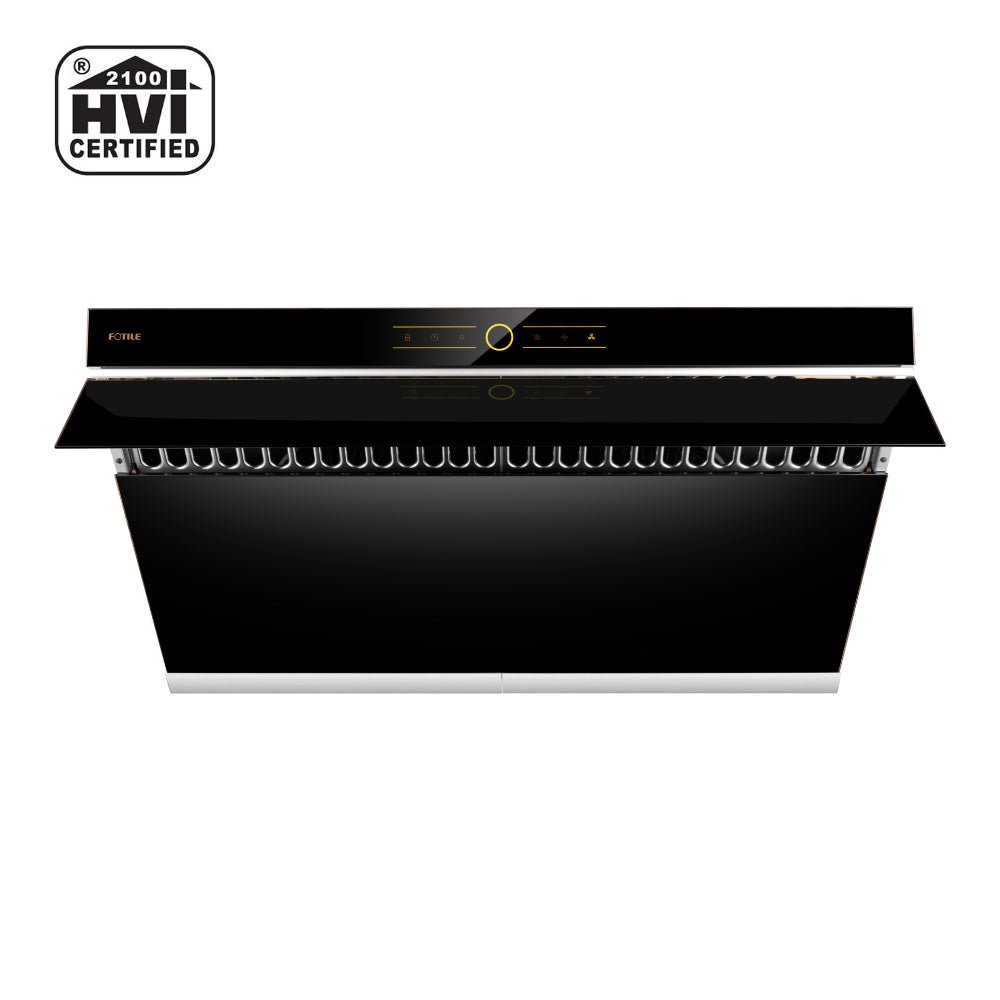

      Certification
      ETL, HVI, CEC

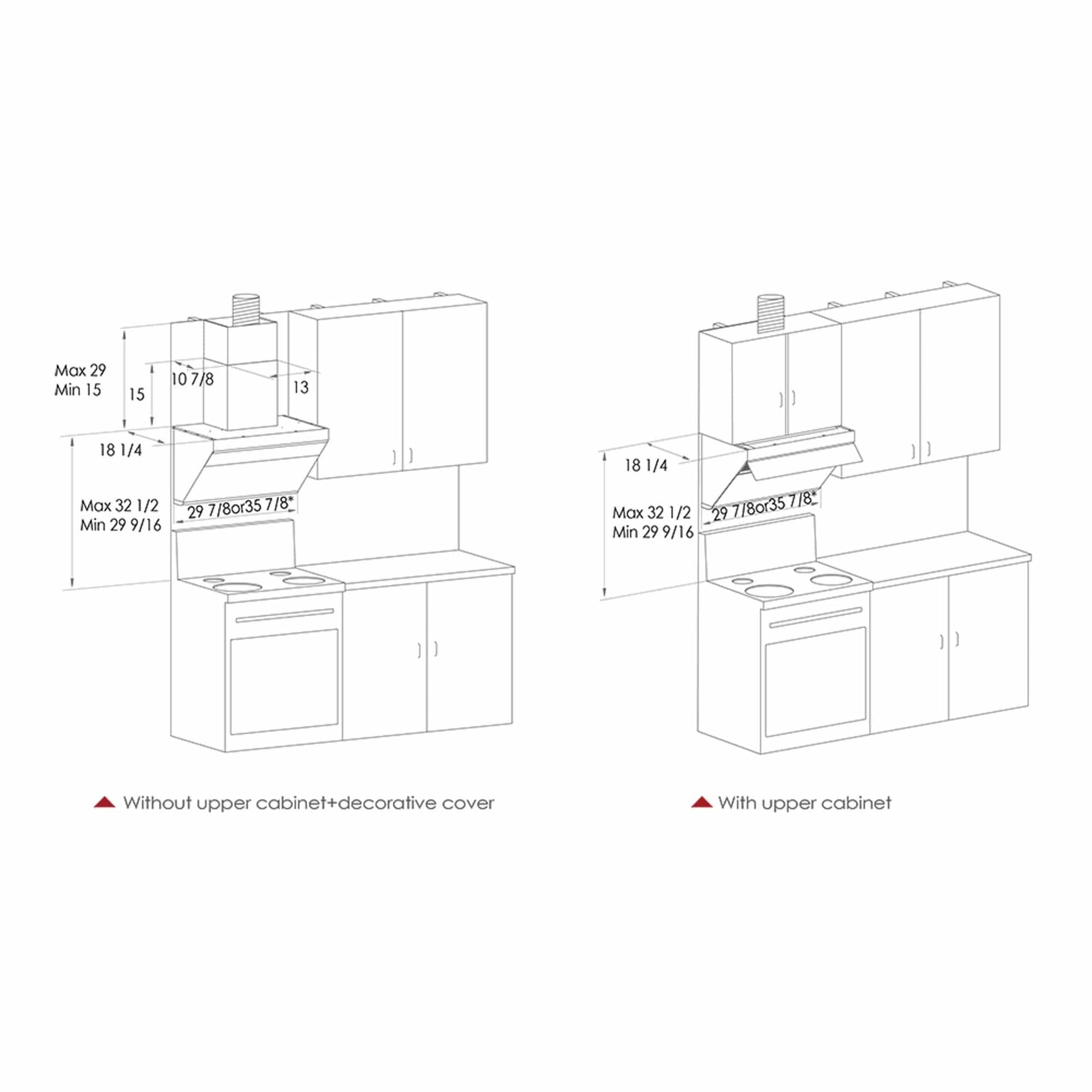

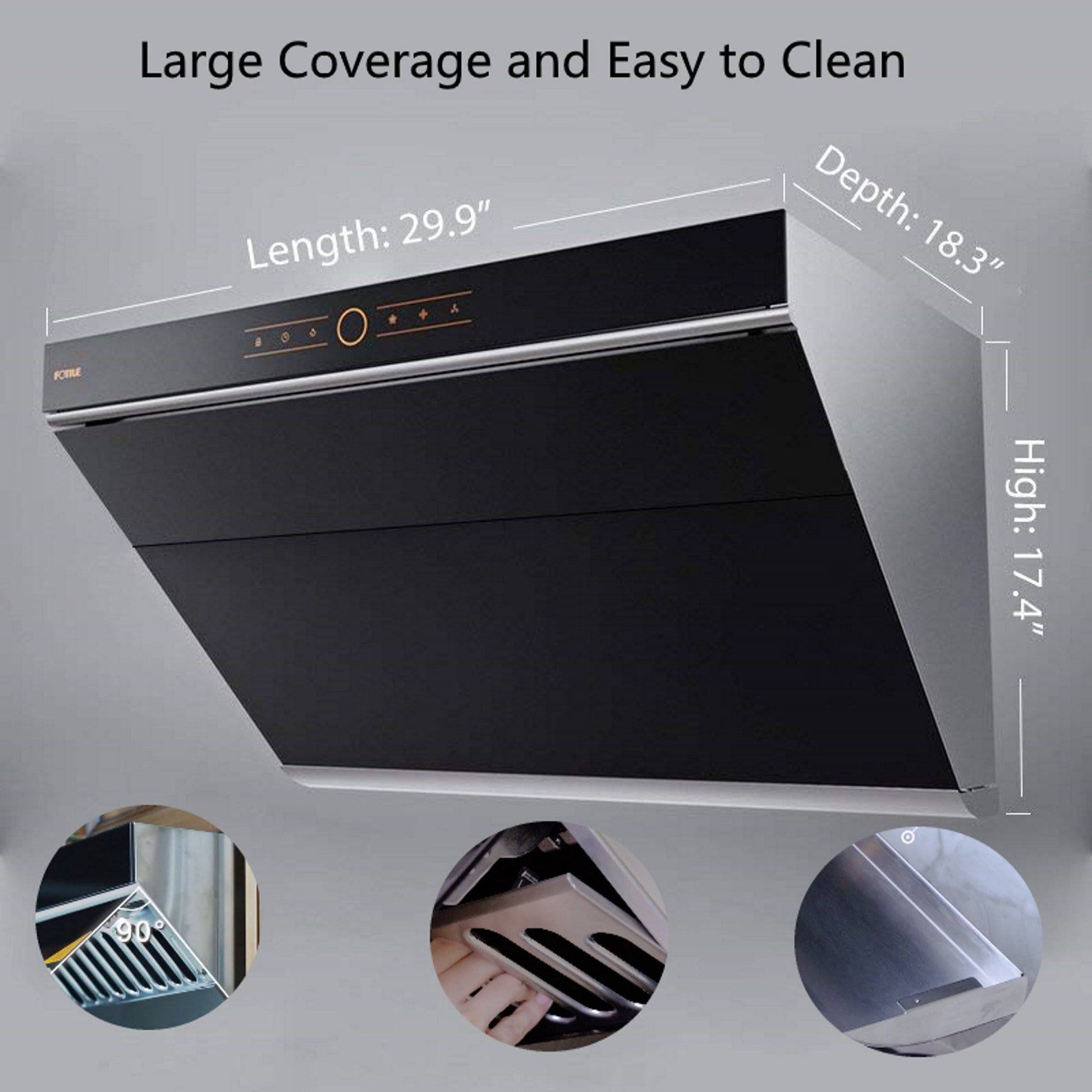

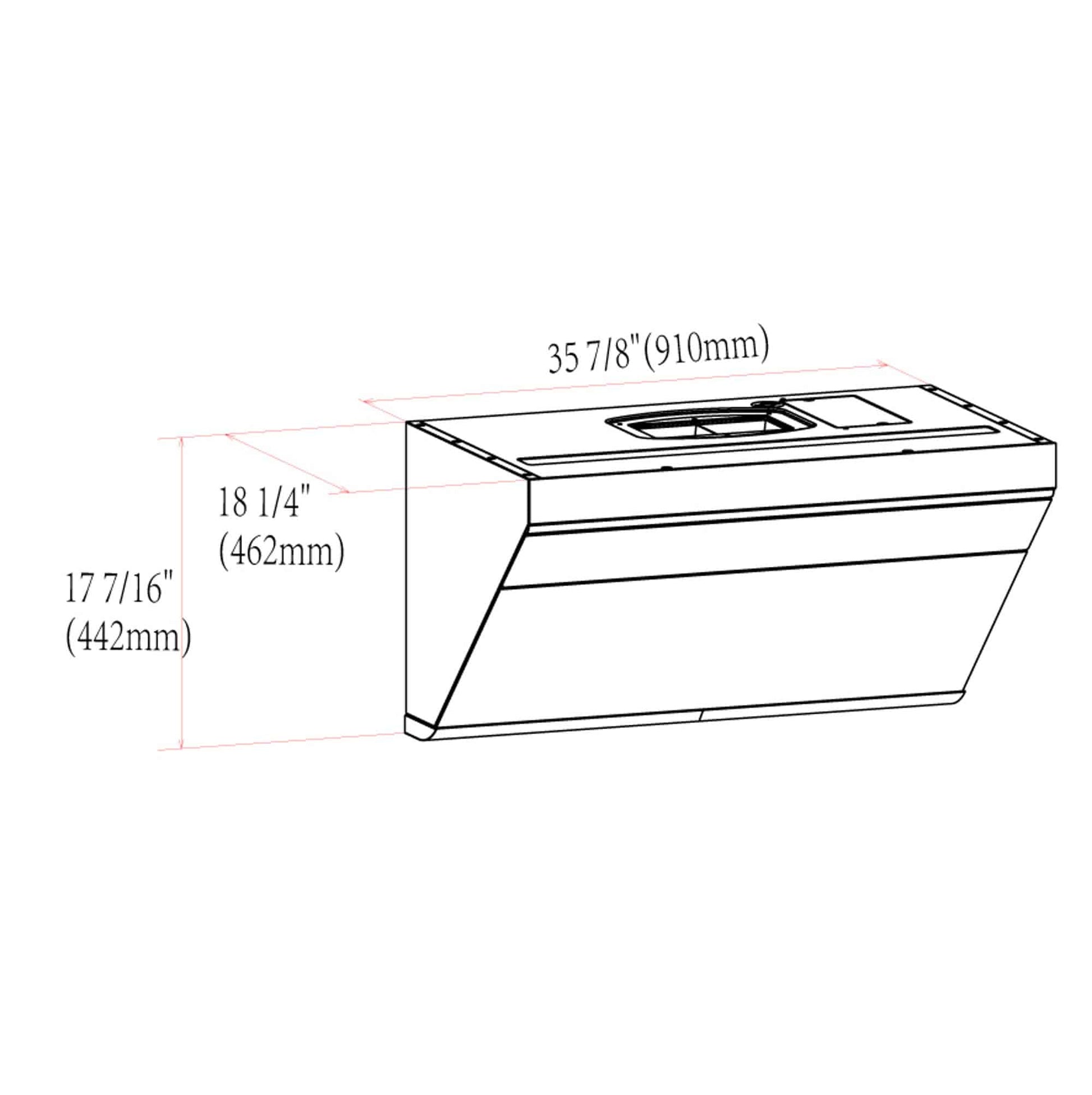

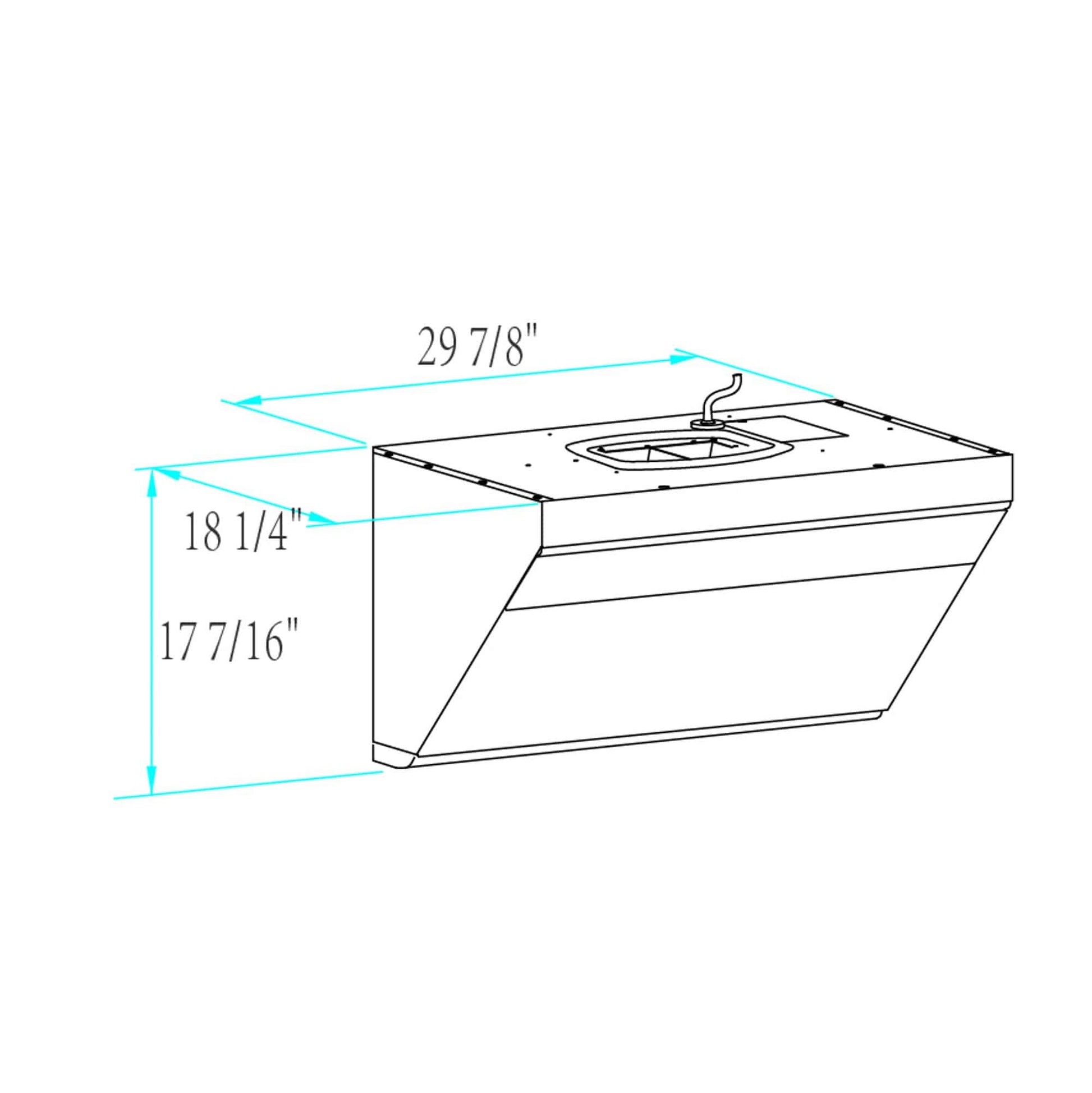

      Product Dimensions
      (WxDxH)(inch)
      JQG7501:
      29 7/8" x 18 7/16" x 17 7/16"
      JQG9001:
      35 7/8" x 18 7/16" x 17 7/16"
      Power Supply
      120V/60HZ
      Max Static Pressure(Pa)
      400Pa
      Speed Setting
      3
      Duct Size(inch)
      6" Round (Top Vented)
      Max. EQUIV.CFM
      850*
      CFM(HVI)
      230 / 400 / 520
      Noise Level(sones)
      1.2 / 4 / 6
      Noise Level(dB)
      39 / 49.2 / 54.3
      Illumination(W)
      3W*2 (LED) 500Lux
      Packing-Box Size(WxDxH) (inch)
      JQG7501: 33 9/16" x 22 11/16" x 23 7/8"
      JQG9001: 43 5/8" × 26 3/4" × 27 3/8"
      Motor Power
      256W
      Product specifications 1
      Product specifications 2
      Product specifications 3
      Product specifications 4
      Product specifications 1
      Product specifications 2
      Product specifications 3
      Product specifications 4
      Certification
      ETL, HVI, CEC
      Product Dimensions
      (WxDxH)(inch)
      JQG7501:
      29 7/8" x 18 7/16" x 17 7/16"
      JQG9001:
      35 7/8" x 18 7/16" x 17 7/16"
      Power Supply
      120V/60HZ
      Max Static Pressure(Pa)
      400Pa
      Speed Setting
      3
      Duct Size(inch)
      6" Round (Top Vented)
      Max. EQUIV.CFM
      850*
      CFM(HVI)
      230 / 400 / 520
      Noise Level(sones)
      1.2 / 4 / 6
      Noise Level(dB)
      39 / 49.2 / 54.3
      Illumination(W)
      3W*2 (LED) 500Lux
      Packing-Box Size(WxDxH) (inch)
      JQG7501: 33 9/16" x 22 11/16" x 23 7/8"
      JQG9001: 43 5/8" × 26 3/4" × 27 3/8"
      Motor Power
      256W

      FAQs
