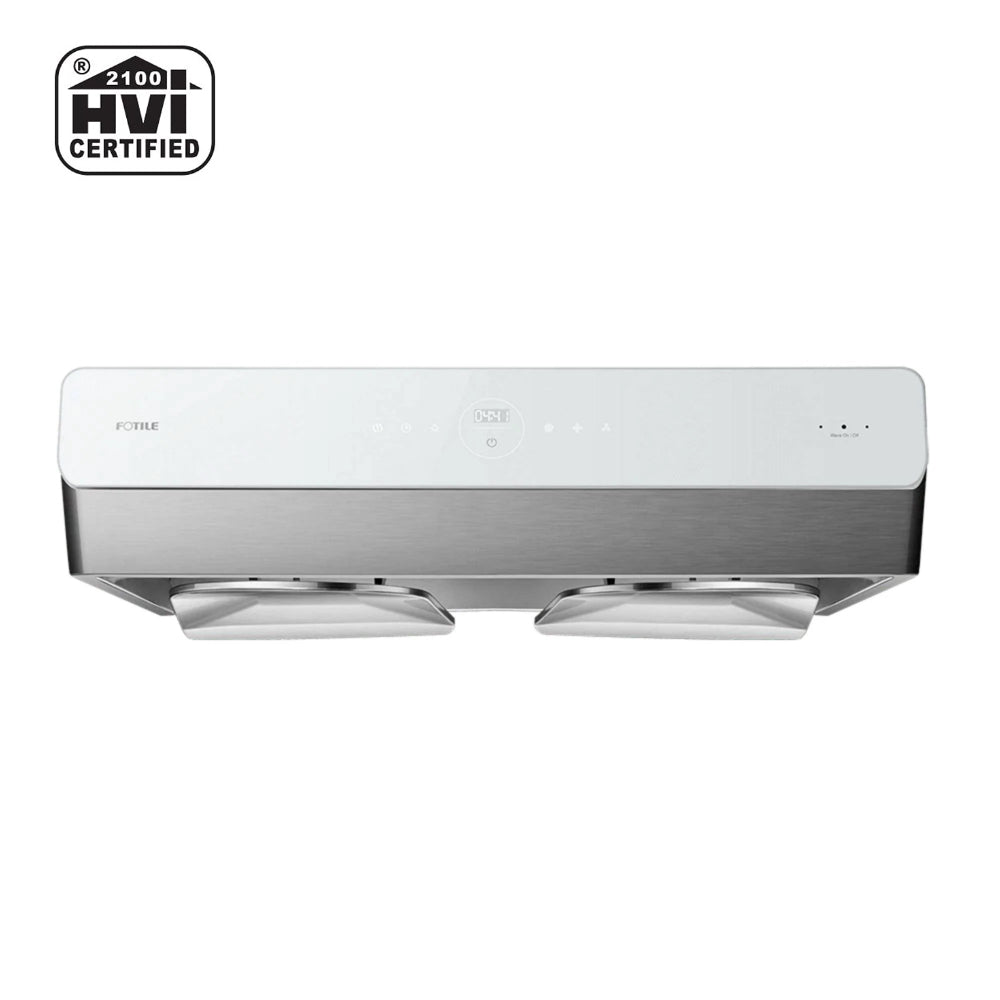

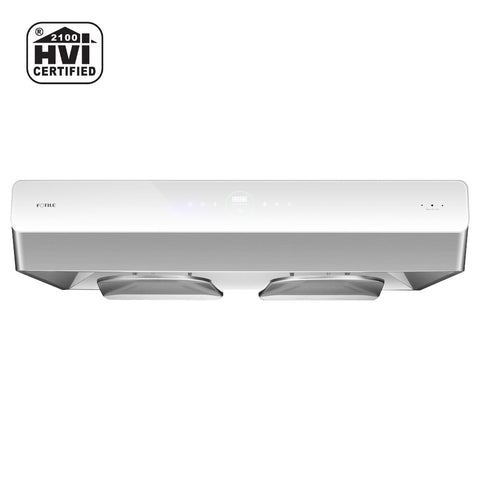

30"/36" Under-Cabinet Convertible Pixie Air Series | UQG3002 / UQG3602

$1,149.00
$1,149.00
51 Reviews
Size: 30"

Designed for your ultimate comfort and safety, FOTILE Pixie Air series range hoods, including UQG3002 (30") and UQG3602 (36"), are among our smallest and quietest under cabinet range hood options. They offer strong ventilation to keep your family safe and healthy in the kitchen. You can convert this ducted range hood to a ductless or recirculating hood with the optional Recirculation Kit, depending on your preferences and needs.

Quiet, efficient, and sturdy, these range hoods offer a variety of features to keep your kitchen safe, clean, comfortable, and smelling fresh.

Pixie Air Series | 30" / 36" Under Cabinet Range Hood

Our latest Pixie Air model range hood comes with all the robust features and powerful technology present in the previous model with one notable update-Motion-Gesture Touch-Free Operation. You can turn this range hood model on and off with the wave of a hand.

This model also includes the following features:

  • Convertible with Recirculation Kit (additional accessory needed)
  • Intelligent Air Management System
  • Delay Shutoff
  • 94% Grease Separation Rate*
  • 99% Odor Elimination Rate*
  • 30 Inch Under-Cabinet Range Hood (UQG3002)
  • 36 Inch Under-Cabinet Range Hood (UQG3602)
  • Max. EQUIV. CFM: 850*
  • 400Pa Max. Static Pressure
  • 38dB Minimum Noise Level
  • CFM Adjustment Tech

*Data on this page are results of ducted range hoods. There is no standard evaluation system for recirculation, nor is there a standard test method.

Add FOTILE Extended Limited Warranty:

1 Year

$49.99

2 Years

$109.99

3 Years

$179.99

Click Here to Learn More about the Extended Warranty:

Optional: Recirculation Kit
Optional: Rear Vent Accessories
Download spec sheet
Download Pixie Air Series Installation Template

30/36" Under - Cabinet Convertible Pixie Air Series | UQG - 02 - FOTILE

30"/36" Under-Cabinet Convertible Pixie Air Series | UQG3002 / UQG3602

$1,149.00

30"/36" Under-Cabinet Convertible Pixie Air Series | UQG3002 / UQG3602

$1,149.00
Size: 30"

Slim Design
Available in 2 Sizes

This FOTILE Pixie Air series’ sleek, ultra-slim profile blends seamlessly into any interior design. Classic stainless steel and modern tempered glass are not only sturdy but aesthetically pleasing. They coordinate with many other appliances for a cohesive look in your kitchen.  Now available in 30 and 36 inches.

WhisPower System

Our WhisPower Technology quietly and powerfully vents up to 850 cubic feet per minute (CFM) of air from your kitchen.

Dual, centrifugal WhisPower motors separate smoke and grease, resulting in a 94% grease separation rate and 99% odor elimination. Grease is collected on our Capture-Shield plates, preventing it from interfering with ventilation and contributing to odor elimination.

Patented 3.0 Capture-Shield Plate

Our Capture-Shield Plates fit neatly under the Pixie Air’s dual fans, increasing the fans’ air speed and suction power by creating a Coanda Effect above your cooktop.

The Coanda Effect describes the natural tendency of warm air to drift toward and flow along nearby surfaces, depositing airborne particles on those surfaces as it moves. Our Capture-Shield Plates draw the warm air and steam radiating from your stove top into a continuous flow, ensuring ultra-fast ventilation. The plates’ design also includes a no-drip oil cup to capture oil and grease and keep both the Pixie Air and your kitchen cleaner.

Air Management System

FOTILE’s Intelligent Air Management System automatically detects and removes harmful gasses and vents them from your home.

We designed the Pixie Air with the perfect balance of safety and convenience in mind. It provides you with fresh, clean air in the kitchen to keep your family safe and give you peace of mind.

Additional Features

In addition to the Pixie Air’s powerful-yet-quiet design, we’ve added a number of features to increase your comfort and enjoyment in the kitchen.

Capture Shield

The Captur Shield, with its integrated oil cup, fits neatly under the fans to capture grease and grime, keeping it contained and away from the mechanisms inside the range hood. The shield plates are designed to detach from the range hood for easy cleaning. Simply place them inside your dishwasher, or wash them by hand.

Minimum Noise Level

Pixie Air features aerodynamic technology, such as FOTILE’s Bionic Impeller, to cut down sound-producing friction. Extremely powerful and ultra-quiet at a minimum noise level of 37 decibels, this feature ensures you can enjoy conversation with friends and family.

LED Lighting

Two levels of innovative LED lights illuminate your cooktop surface so you can easily monitor the color and texture of the food you’re preparing. Our Bright Vision lights shine up to 600 LUX.

CAT—CFM Adjustment Technology

FOTILE’s CFM Adjustment Technology (CAT) enables you to be compliant with local ordinance codes.

Simply use the Air Management Buttons on the front of the range hood to adjust the cubic feet per minute (CFM) of air that is vented from your home.

Multi-Shift Delay Shutoff

Continue removing lingering odors after cooking with our programmable Multi-Shift Delay Shutoff feature. Simply delay the shutoff by 5, 15, or 30 minutes and let the Pixie Air do the rest.

Motion Activation

FOTILE’s motion-gesture, contactless technology enables you to quickly turn on your range hood to vent an excess of smoke or steam.

Simply wave at the Pixie Air to turn it on or off, including the fan and lights, without leaving a single fingerprint.

Under Cabinet Range Hood Specifications

ModelUQG3002 / UQG3602
Installation / Mount TypeUnder Cabinet
Product Dimensions (WxDx H)UQG3002:
29 13/16" x 22 1/16" x 8 5/16"
UQG3602:
35 3/4" x 22 1/16" x 8 5/16"
Net Weight (lb)UQG3002: 54
UQG3602: 56.2
Venting TypeDucted / Recirculating (kit sold separately)
Duct Diameter7" round
